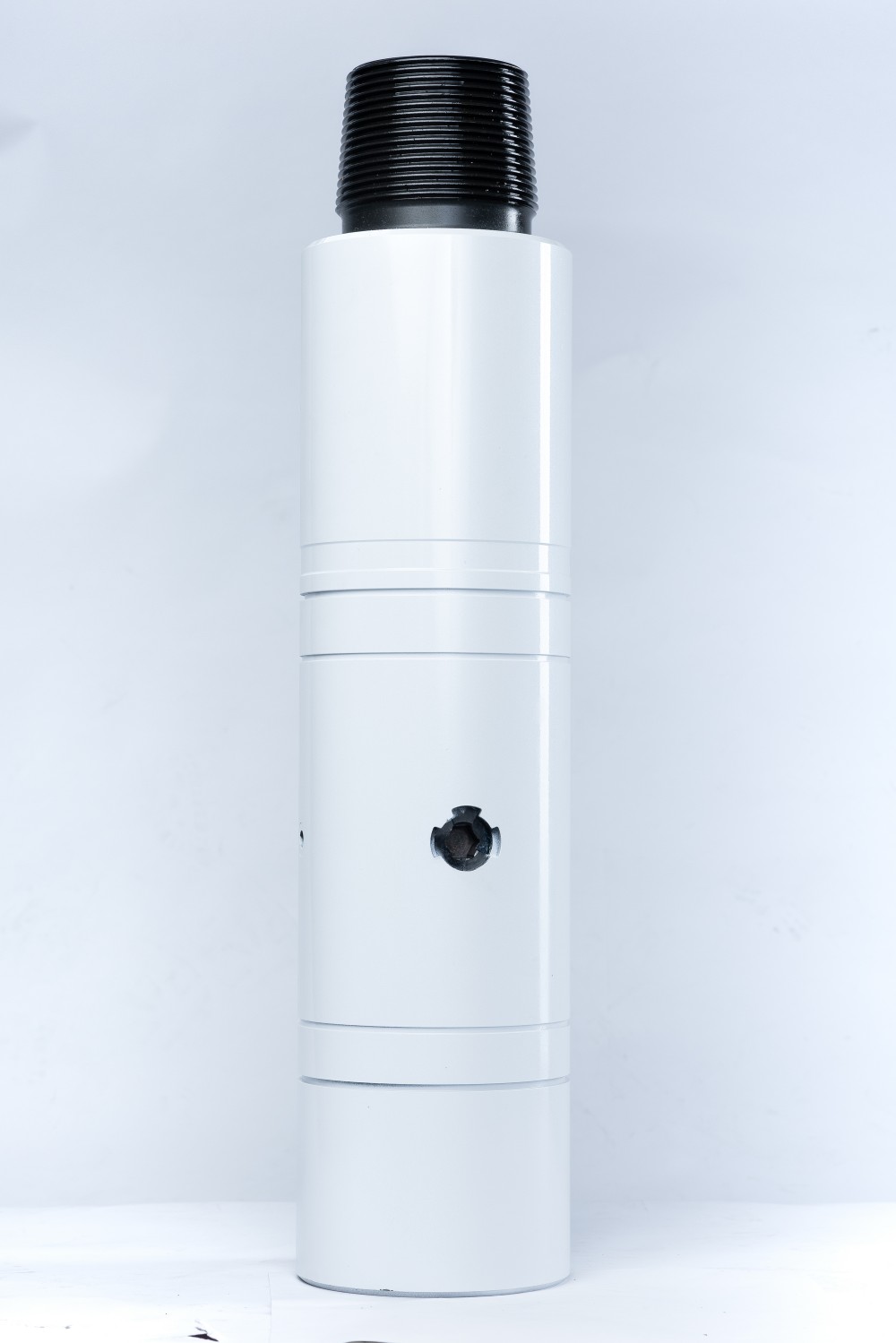

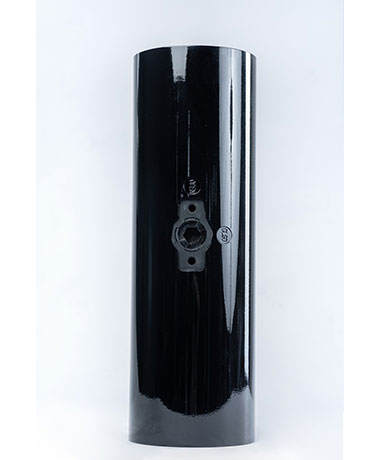

Introduction to Top Drive IBOP Plug Valve: The top drive IBOP plug valve is a control valve used in conjunction with top drive drilling equipment in petroleum drilling engineering. It is used to control the pressure and flow at the wellhead, protecting the safety of wellhead equipment and drilling personnel. It can be divided into two types: top drive upper plug valve and top drive lower plug valve. Usually, the two valves are connected in series to the top drive drilling device. This valve can withstand high pressure from both directions, and its working pressure can reach 10000-15000psi
Features: The valve body material is made of AISI 4330V, which is an American standard low-alloy high-strength structural steel with higher yield strength and impact performance. It also has the advantages of good hardenability, small quenching deformation, and good mechanical processing performance.
In drilling engineering, the application of top drive plugs mainly includes the following aspects:
1. Prevent contact between the top roller and the work platform
The top drive plug can achieve the rotation of the top roller, thereby avoiding contact with the work platform. This not only improves work efficiency, but also ensures work safety.
2. Control wellhead pressure
The top drive plug can control the wellhead pressure, thereby ensuring the safety of wellhead equipment and drilling personnel. It can be adjusted in a timely manner according to the situation of the wellhead to ensure its stability.
3. Control the flow rate of drilling fluid
The top drive plug can control the flow rate of drilling fluid, thereby affecting the drilling speed. Properly adjusting the flow rate of drilling fluid can improve drilling efficiency, reduce working time and costs.
4. Drill bit entering and exiting the wellbore
The top drive plug can also control the speed and direction of the drill bit entering and exiting the wellbore, and appropriate adjustments can improve drilling efficiency and reduce work costs.
